- Place of Origin: Shandong, China
- Brand Name: GETE
- Model Number: PA2-1530
- Weight: 1500.000 kg
- :
- :
- :
- :
- :
- :
- :

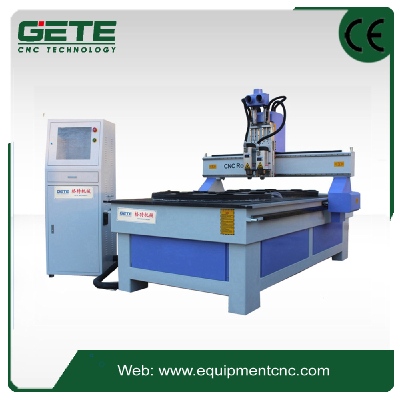

Applicable Industry and materials of PA2-1530 3D Two Heads Wood CNC
Carving Router machine
Woodworking: all kinds of doors, windows, cabinets, wooden craft, paint doors, screens,
process window,wooden processing.
Art craft: engraving characters of any languages and graphics on gifts and souvenirs.
Machine specification of PA2-1530 China GETE Two Heads Wood CNC
Carving Router
1. Imported linear square rails, double four ball slider, loading capacity, smooth operation, high
precision,long life. Imported high precision ball screws, with high-precision when cut.
2. With computer control cabinet, more convenient and tidy. More humane design, a unique
intelligence budget rules, full electrical potential to achieve high-speed processing, linear
synchronous, the curve is more perfect, does not account for computer memory and enables
the automatic start and stop cutting spindle.
3. Software compatibility, type3 / ARTCAM / CASTMATE / UCANCAM and other CAD / CAM
design software.
4. Two Heads Wood CNC Router Using high-speed drive stepper motor and drive, Y-axis
dual-motor drive, so that the max moving speed can up to 30 m / min, with strong cutting
engraving spindle speed can be more improved.
5. Two Heads Wood CNC Router Equipped with automatic lubrication system, just push the
button simultaneously for all rail slider oiling
- Place of Origin: Shandong, China
- Brand Name: GETE
- Model Number: PA2-1530
- Weight: 1500.000 kg
- :
- :
- :
- :
- :
- :
- :
Machine configurations of PA2-1530 GETE Two Heads Wood CNC Carving
Router
Spindle | 4.5KW |
Rail | Taiwan HIWIN square rail (high type of dustproof, 3000 km maintenance-free, easy maintenance, lubrication-free type slide, loop fuel injection systems) |
Control system | NC-studio (Anti-jamming capability, system stability, high precision, good finish) |
Inverter | HPMONT inverter |
Transmission | X/Y axis rack gear ; Z axis ball screw;(high precision, high speed) |
Limit switch | The best one in domestic |
Cable | Woodpecker engraving machine dedicated cable (jamming, anti-static; with high flexibility, long-term use will not break) |
Machine bed | Thick-walled square tube welded steel body, vibration aging treatment, prolonged use of deformation, to ensure the accuracy of the overall machine bed |
