- Place of Origin: Shandong, China
- Brand Name: GETE
- Model Number: PA2-1325
- Weight: 1500.000 kg

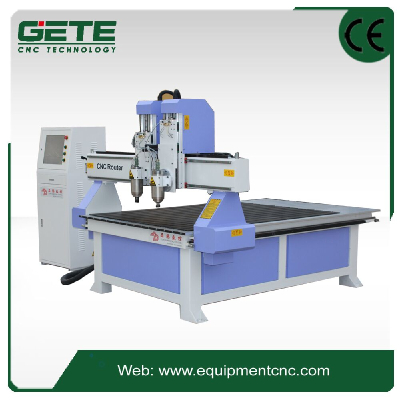

PA2-1325 Wood Door 3D CNC Engraving Router Machine
Applicable Industry and materials of Wood Cutting Machine
Woodworking: all kinds of doors, windows, cabinets, wooden craft, paint doors, screens, process window, wooden processing.
Art craft: engraving characters of any languages and graphics on gifts and souvenirs.
Machine specification of Wood Cutting Machine
1. Imported linear square rails, double four ball slider, loading capacity, smooth operation, high precision, long life. Imported high precision ball screws, with high-precision when cut.
2, With computer control cabinet, more convenient and tidy. More humane design, a unique intelligence budget rules, full electrical potential to achieve high-speed processing, linear synchronous, the curve is more perfect, does not account for computer memory and enables the automatic start and stop cutting spindle.
3, Software compatibility, type3 / ARTCAM / CASTMATE / UCANCAM and other CAD / CAM design software.
4, Using high-speed drive stepper motor and drive, Y-axis dual-motor drive, so that the max moving speed can up to 30 m / min, with strong cutting engraving spindle speed can be more improved.
5, Equipped with automatic lubrication system, just push the button simultaneously for all rail slider oiling
- Place of Origin: Shandong, China
- Brand Name: GETE
- Model Number: PA2-1325
- Weight: 1500.000 kg
Name | PA2-1325 Wood Door 3D CNC Engraving Router Machine |
Voltage | 3 phase 380V |
Power(W) | 3.0kw water-cooling spindle |
X Y Z Guide Rail | Taiwan Square Rail |
X Y Transmission | Imported Rack Gears |
Z Transmission | Imported Ball Screw |
Drive motor | stepper motor |
| 1300*2500*200mm |
Spindle power | 4.5kw air- cooling |
Spindle speed | 0-18000rpm/min |
Drive motor | stepper motor |
Max Working Speed | >20m/min |
Tool Diameter | 2 ----20 |
Advantage | Simple design, Complete Function |
