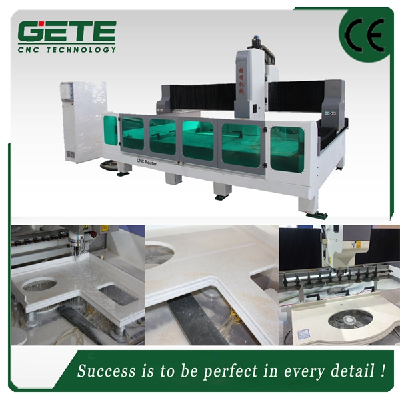

High effcient PM3113-18 CNC Stone Machining Center
We supprotTrade Assurance ,if your product are not shipped on time,
or if product quality not meet the standards set in your contract,
Your money will be returned to you!
Applicable Industry and materials of Granite Stone Cutting and Polishing Machine
Suitable for cabinets artificial stone, quartz stone countertops and sink, tea tray carving, European style edging, and other heterosexual stone, ceramics, glass and ceramic stone drilling, sanding, edge down, carving.
Features of Granite Stone Cutting and Polishing Machine
1. The software: for UncGraphics.NX3.0, Mastercam9.0 other software, set the CAD / CAM as a whole, through digital analysis, design, the product was processed to support procedural pre / igs / scep / dxf / dwp and other documents.
2. The ATC system: vertical-type ATC system makes the whole process from the hole, cutting, shaping and polishing to a variety of milling processes go, the full realization of a high degree of automation.
3. The tool and abrasive: with a large number of imported and domestic variety of tool and abrasive and shapes, and a variety of processing requirements.
4. High-precision screw and guide: the use of screw, guide renowned German manufacturer has provided.
5. X, Y axis using the original oil-immersed lubrication. Coupled with effective waterproof, dustproof structure 'to ensure high precision machining and screw maximize service life of the rail.
- Size: 26
- Place of Origin: Shandong, China
- Brand Name: GETE
- Model Number: PM3113-18
- Weight: 4800.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
High effcient PM3113-18 CNC Stone Machining Center
X,Y,Z working area | 3100*1300*300mm |
Lathe Bed | Thick steel weld |
Table | Steel board Aluminum board |
XYZ Guide Rail | 30mm Taiwan Square Rail |
X Y Transmission | Imported Rack Gears |
Z Transmission | Imported Ball Screw |
Spindle | 5.5kw Servo Customized Spindle |
Motor | Servo motor |
Drive | Servo driver |
Way of fixing Workpiece | Scuction Cup |
vacuum pump | 5.5kw water-cooling |
Control system | NC-studio control system |
Command languages | G code |
Software compatability | Origin JD software |
Working voltage | AC380V/3phase,50HZ |
Weight | 4800kg |
