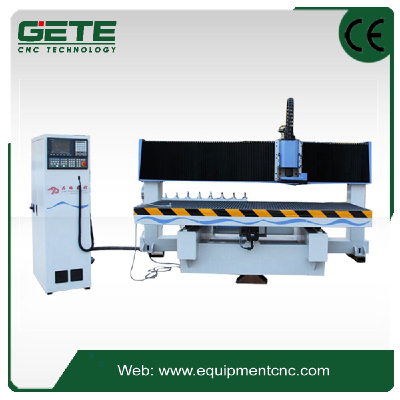

GT-1325 3D Wood CNC Cutting Machining Center

GT-1325 3D Wood CNC Cutting Machining Center

  • Min.Order Quantity: 1 Set
  • Supply Ability: 20 Sets per Month
  • Port: Qingdao/shanghai/ningbo
  • Payment Terms: L/C,D/A,D/P,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2015-03-09
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  Shandong, China
  • Brand Name:  GETE
  • Model Number:  GT-1325
  • Weight: 1500.000 kg


GT-1325 3D Wood CNC Cutting Machining Center


Applicable Industry and materials of Wood Cutting Machine

1. Furniture industry: all kinds of furniture, solid wood furniture, cutting and carving;

2. AD industry: gifts, crystal jewelry, advertising logo signs, mini word Engraving

3. Industry: sandwich plate, nylon board, fiberboard and a variety of soft metal processing



Features of  Wood Cutting Machine

1. This machine uses the table move cutting mode, X, Y, Z axis all adopt imported screw driver, both speed and precision, reasonable structure and stable performance.

2. Rectangular pipe welding machine, high temperature tempering treatment to ensure the body deformation, rigidity and strength.

3. This machine adopts Japanese YASKAWA servo motor drive, high speed, high precision, high stability

4. Imported Italy HSD series frequency spindle, 3000-24000RPM

5. The table made by a high strength sheet milling, with a strong adhesive force, equipped with a powerful vacuum system to ensure no dust flying phenomenon in the process.

6. Automatic lubrication system with just one touch, easy to complete regular maintenance.

7. Electrical cabinet electrical components used ABB, SCHNEIDER, WAGO, SIEMENS and other import brand


  • Place of Origin:  Shandong, China
  • Brand Name:  GETE
  • Model Number:  GT-1325
  • Weight: 1500.000 kg

GT-1325 3D Wood CNC Cutting Machining Center

Model

GT-1325

Machine dimensions

4500*2900*3800mm

XYZ working stroke

1300*2500*200mm

B/C axis travel

B:±185°,C: ±320°

Table size

1300*2500mm

Transmission

X/Y/Z HIWIN 40mm ball screw

Guide rail

HIWIN 35mm pin rollerguide rail

Table structure

Aluminum (with T-slot)

Spindle power

12.0KW HITECO Italy

Inverter

11KW Delta

Spindle speed

24000 r/min

Spindle type

Double swing head

Software

POWERMILL

Control system

Taiwan SYNTEC control system

Fast moving speed

40 / 40 / 20m/min

Max.processing speed

20m/min

ATC type

Disk 8 bits tools

Delivery time

45 working days after prepaid

Drive System

Japanese servo motor

Voltage

AC380/3PH/50HZ

RTCP

Our program can do this function

XYZ repositioning precision

0.01mm/1000mm

Editor

Servo editor absolute value

Suitable material

Wood, foam, aluminum
