- Guaranteed Secure Payments on Every Order
- Refund if your item is not delivered or as described
- Buyer Protection after order confirmation
- Place of Origin: Shandong, China
- Brand Name: GETE
- Model Number: T8-2512
- Weight: 1800.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :

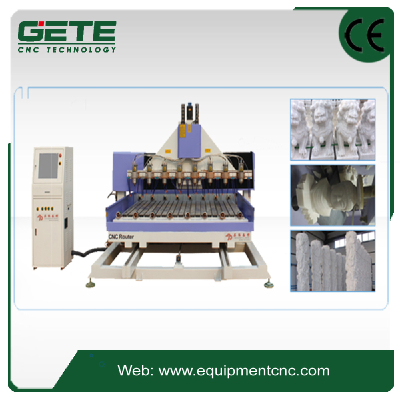

China PMSK 8 heads 3D three-dimensional CNC Stone Engraving Router
We supprot the product,if your product are not shipped on time,
or if product quality not meet the standards set in your contract,
Your money will be returned to you!
Applicable Industry and materials of 8 heads 3D three-dimensional CNC
Stone Engraving Router
1.Granite, marble, bluestone, sandstone and other stone carving;
2.Granite and other hard stone carvings can be layered to 5mm;
3.Marble, bluestone, etc. can be a sculpture to 5mm.
- Place of Origin: Shandong, China
- Brand Name: GETE
- Model Number: T8-2512
- Weight: 1800.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
Features of PMSK 8 heads 3D three-dimensional CNC Stone Engraving
Router
Machine model | T8-9015 | T8-1218 | T8-1325 |
X size | 900mm | 1200mm | 1300mm |
Y size | 1500mm | 1800 | 2500 |
Z size | 260mm | 260mm | 260mm |
Dimension | 1100mm x 2000mm | 1400mm x 2300mm | 1600mm x 3100mm |
Process precision | 0.05mm | 0.05mm | 0.05mm |
Reposition accuracy | 0.05mm | 0.05mm | 0.05mm |
Table structure | aluminum | aluminum | aluminum |
Transmission | x/y rack gear, Z ball screw | x/y rack gear, Z ball screw | x/y rack gear, Z ball screw |
Power(no spindle) | 2kw | 2kw | 2kw |
Max moving speed | 8800mm/min | 8800mm/min | 8800mm/min |
Spindle power | 4.5Kw | 4.5Kw | 4.5Kw |
Spindle speed | 0-24000RPM | 0-24000RPM | 0-24000RPM |
Motor | Stepper motor | Stepper motor | Stepper motor |
Voltage | AC 380V/50HZ | AC 380V/50HZ | AC 380V/50HZ |
Commend | G CODE | G CODE | G CODE |
Control pattern | PCI CARD control | PCI CARD control | PCI CARD control |
